• Intelligent Automation: Our irrigation controllers can fully automate irrigation procedures using smart irrigation techniques based on evapotranspiration calculation when coupled with FINoT Agri series microclimate and/or weather stations. This allows for intelligent and autonomous adjustment of irrigation cycles based on rainfall and soil moisture, with the flexibility to manually modify thresholds.
• Precision Water Delivery: Capable of measuring soil moisture at multiple points in the field (up to 4 points) and precipitation using a tipping-bucket sensor. It also supports connection to multiple pulse water flow meters (up to 4, expandable to 12).
• Flexible Station Support: Our DIN-rail device supports up to 8 stations, expandable to 16 stations, for 24V AC solenoids. It also includes Master valve support with configurable position.
• Remote Administration: Provides out-of-the-box capability to remotely administer irrigation using a wireless NB-IoT based connection or a local gateway device.
• Advanced Programming Capabilities: Offers 8 time-scheduling profiles with up to 4 irrigation cycles per day, maximum runtime of 8 hours per station, calendar-like scheduling (including month and weekday selection), interval-based scheduling (up to 30 days), and seasonal adjustment support.
• Rainfall and Soil Moisture Skipping: Automatically skips irrigation cycles due to rainfall or high soil moisture, preventing overwatering and conserving resources.
• Robust Communication: Utilizes LTE CAT NB2 and 6LoWPAN mesh at 2.4GHz for reliable wireless communication, with Over-The-Air (OTA) firmware update support.

• Multi-Zone Management:
• • • Control up to 8 stations (expandable to 16) with support for master valves and pulse flow meters.
    • Integrate up to 4 soil moisture sensors and a precipitation sensor for field-level monitoring.
• Advanced Scheduling:
• • • Calendar-based and interval-based scheduling with support for up to 4 irrigation cycles per day.
    • Seasonal adjustment and smart irrigation features for adaptive water management.
• Wireless & Cloud Integration:
• • • NB-IoT and 6LoWPAN connectivity for remote operation and over-the-air firmware updates.
    • Cloud-based platform for centralized management, monitoring, and reporting.
• Sensor-Driven Automation:
• • • Automatically adjust irrigation based on soil moisture, rainfall, and weather forecasts.
    • Manual override options for flexible operation.
• Robust Hardware:
• • • DIN-rail mounted controller for secure installation in control cabinets.
    • Supports 24 VAC solenoid valves and pulse flow meters.

Precision irrigation is a key component of several Future Intelligence solutions, offering significant benefits across different sectors:

1. Smart Agrifood

Optimizes water usage and enhances productivity in agriculture.

• • • Field and Greenhouse Irrigation: Automate irrigation for open fields, greenhouses, and specialty crops. Optimize water use and reduce labor with smart scheduling and sensor integration.
    • Crop-Specific Management: Tailor irrigation to crop type, growth stage, and environmental conditions. Monitor soil moisture and weather to prevent over- or under-watering.
    • Crop Optimization: Provides optimal irrigation based on specific crop needs, growth stages, and environmental factors, enhancing crop health and yield.
    • Resource Conservation: Significantly reduces water waste and energy consumption by adapting irrigation schedules dynamically.
    • AgriPV Solutions Integration: Supports integrated solutions that combine smart irrigation with power generation forecasting for optimized land use, energy efficiency, and agricultural productivity.

2. Smart Infrastructures & Urban Management

Enhances the efficiency and sustainability of urban green spaces.

• • • Urban Green Space Management: Enables remote control and management of centralized irrigation in public gardens, parks, and other green areas, combining water consumption monitoring with critical environmental parameters.
    • Rooftop and Balcony Systems: Manage irrigation for green roofs, vertical gardens, and urban agriculture.
    • Public Vegetable Gardens: Supports the efficient and sustainable management of shared vegetable gardens within municipalities.

3. Primary Sector

Supports sustainable practices and resource management in agricultural and livestock areas.

• • • Smart Water Resource Management: Facilitates optimal irrigation and monitoring of water quality and consumption in agricultural and livestock areas, as well as municipal irrigation boreholes.
    • Cost Reduction: Contributes to reduced resource waste through automated irrigation systems.

4, Smart Communities

• • • Community Gardens and Shared Spaces: Enable community-driven water management with remote monitoring and control. Foster sustainability and engagement through data-driven decision-making.
    • Sustainable Practices: Promotes sustainable water use within communities by regulating irrigation based on environmental conditions.

Our Smart Irrigation systems integrate seamlessly to provide intelligent water management:

• Sensor Deployment: Soil moisture sensors and precipitation sensors are strategically deployed in the field, connected to the FINoT Irrigation Controller.
• Controller Integration: The FINoT Irrigation Controller connects wirelessly via NB-IoT or a local gateway, optionally linking with FINoT Agri Microclimate and/or Weather Stations.
• Data-Driven Decisions: Real-time data from sensors and weather stations informs the controller, which can autonomously adjust irrigation cycles based on predefined rules, soil moisture levels, rainfall, or evapotranspiration calculations.
• Remote Management: Users can remotely administer irrigation procedures and manage settings through the FINoT Platform and FINoT Sense application.
• Resource Optimization: By intelligently adjusting water delivery, the system reduces water consumption and associated energy costs, while maintaining optimal plant health.

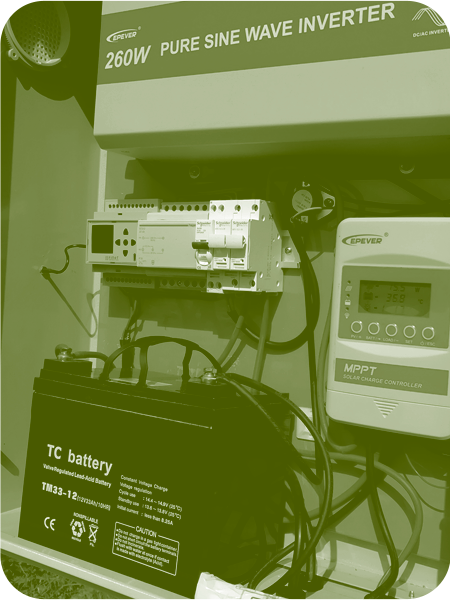

• FINoT Irrigation Controller: An 8-station (expandable to 16) DIN-rail mounted controller for 24V AC solenoids. Itfeatures inputs for up to 4 soil moisture sensors, a precipitation sensor, and up to 4 pulse water flow meters(expandable to 12). It supports NB-IoT/6LoWPAN connectivity and is designed for power- autonomousoperation when combined with relevant power solutions.

“With FINoT Irrigation, we’ve reduced water use and improved crop health through precise, automated scheduling—all managed remotely from our office.” — Agricultural Producer

“Our city parks are now greener and more resilient, thanks to smart irrigation that adapts to weather and soil conditions.” — Urban Green Space Manager

• Maximize Water Efficiency: Reduce waste and ensure optimal plant health with data-driven irrigation.
• Remote and Automated Control: Manage your irrigation system from anywhere, at any time.
• Scalable and Interoperable: Expand your system as needed and integrate with other FINoT solutions for a holistic approach to resource management.
• Sustainable and Future-Proof: Leverage the latest IoT and cloud technologies for long-term value and adaptability.

Contact us today to discuss your sensor networking needs and lay the groundwork for your next intelligent project.
